Grunwald Bucket Filling Machines

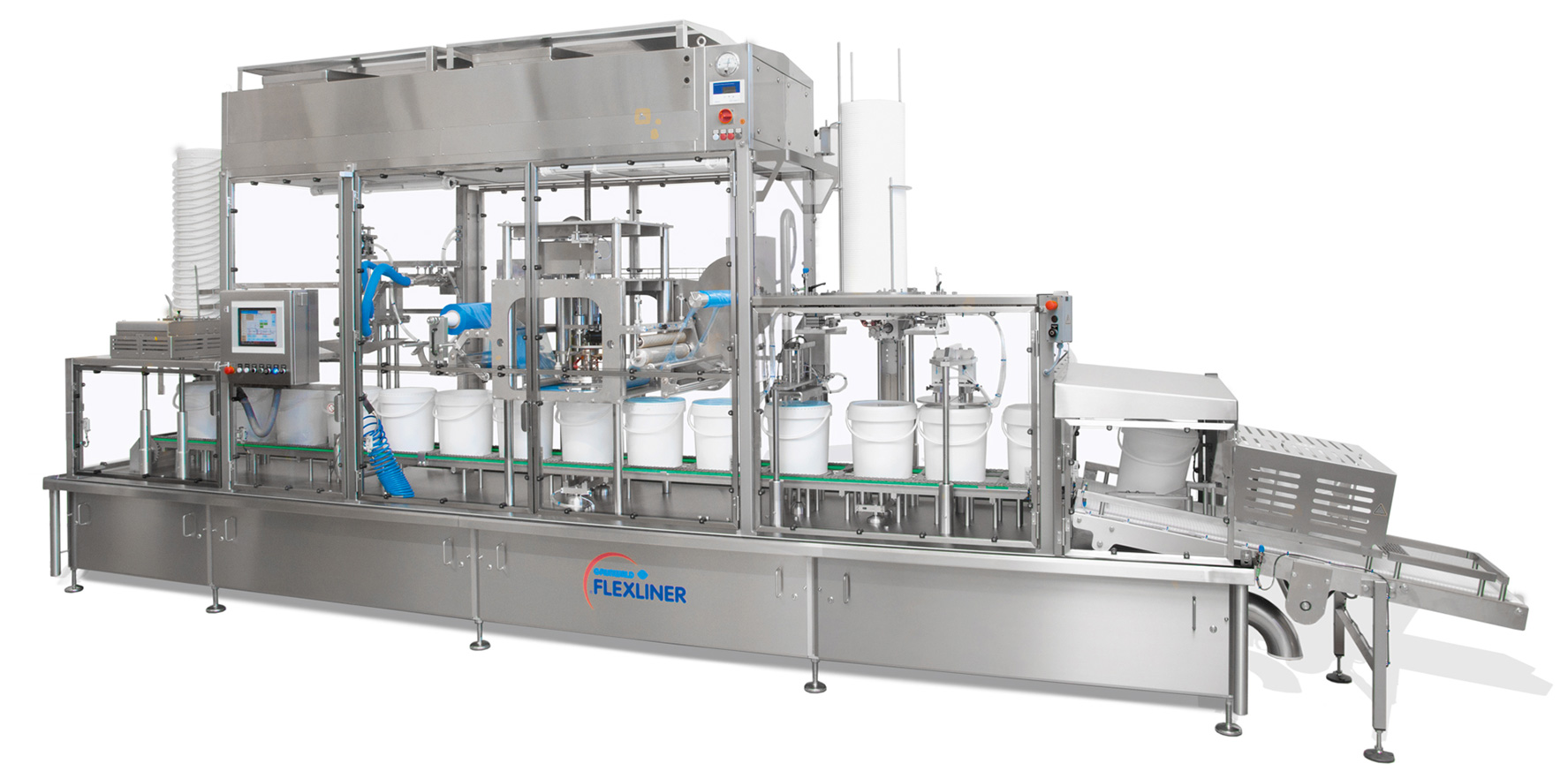

Flexliner XL
The design of the fully-automatic and extremely flexible bucket filling and closing machine FLEXLINER XL-1 was based on proven design features. The abundance of options is manifested by the equipment of this Flexliner XL-1. Great value was given to
- operator-friendly handling,
- easy cleaning,
- extremely smooth running,
- high availability,
- minimum of format changeover times as well as
- maximum cost-efficiency.
- Machine width: 1.000 mm
- 1-lane
- Approx. 240 – 900 buckets/h
- Dosing range: 1 – 20 litres
HITTPAC XL
Our compact rotary-type bucket filling machine - almost without any format parts - giving phenomenal value for money. The fully-automatic format flexible rotary-type bucket filling machines complement the full model range of linear bucket filling machines.
- Dimensions: max. 1.700 x 1.700 mm 8-station rotary table
- Optionally with
- cutting/sealing station and
- leak test station.
- 1-lane
- Approx. 500 – 1.300 buckets/h
- Dosing range: 1 – 10 litres,
- in special design dosing range up to 20 litres possible
Possible applications:
For all round and rectangular buckets, with and without handle for liquid and pasty products.
The most important advantages of rotary-type bucket filling machines are:
- increased production speed due to considerably higher rotary table cycle speed compared to inline bucket filling machines
- lower space requirements as well
- good value for money.
One important feature is the dosing station which was designed for guaranteed high filling accuracy.
Previous experience has shown us that production increases of 25 % to 50 % are possible.

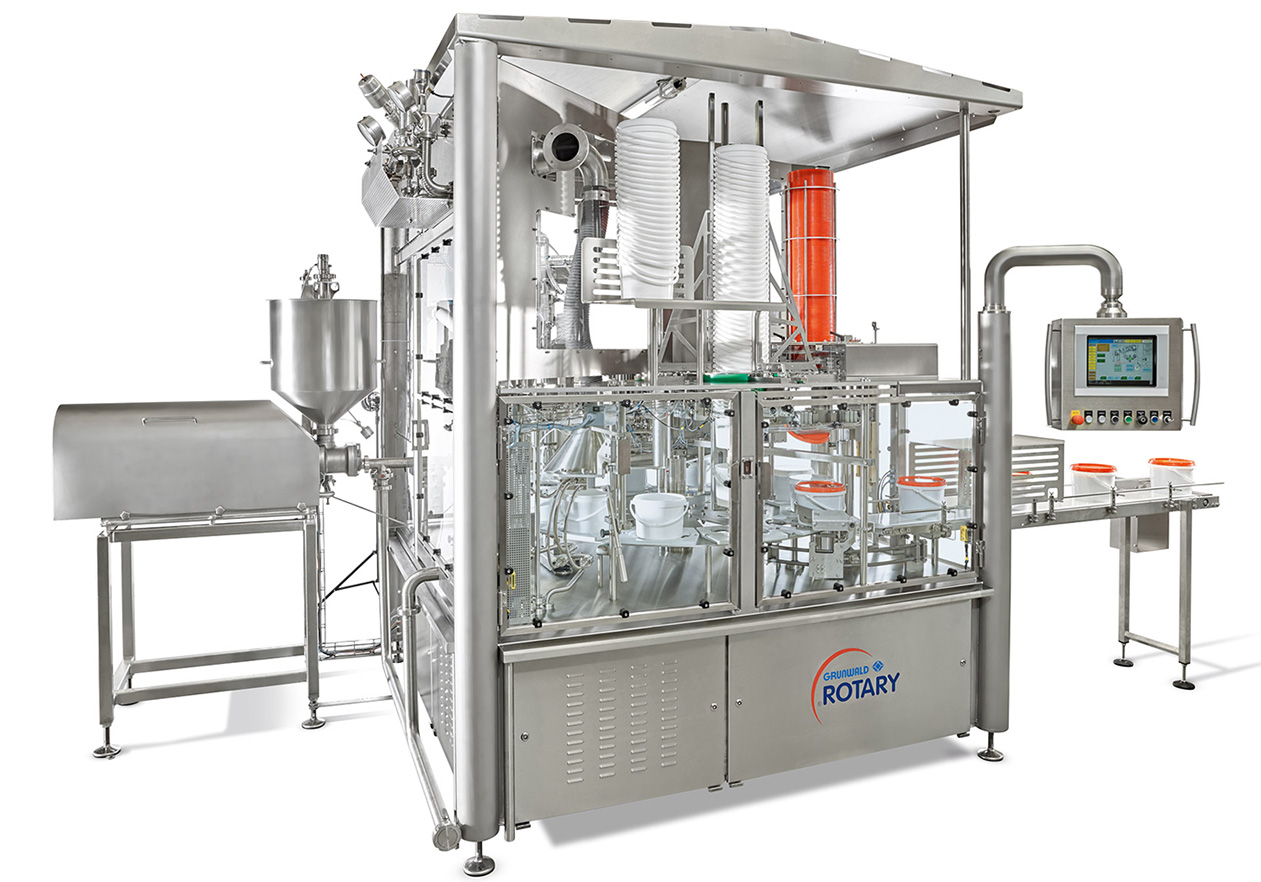

Rotary XL
The fully-automatic bucket filling machine ROTARY XL offers compact solutions with phenomenal value for money.
- Dimensions: max. 2.300 x 2.300 mm 12-station rotary table It offers supplementary options for bucket filling and for the assembly of additional customer-specific stations.
- Optionally it can be equipped with
- packing material sterilisation,
- cutting/sealing station and
- leak test station. 1-lane
- 1-lane
- Approx. 500 – 1.300 buckets/h
- Dosing range: 1 – 10 litres,
- in special design dosing range up to 20 litres possible
Possible applications:
For all round and rectangular buckets, with and without handle for liquid and pasty products.
Ultraclean design with
- laminar cabin
- with special high-pressure UV(C) radiators for buckets and sealing film at a guaranteed sterilisation rate of ≥ LOG4.
