Grunwald Dosing Machines
GRUNWALD Dosing Machines are dosing valuable food - from dairy products up to delicacies and ready-meals at a high capacity in a very careful and weight-accurate way.
GRUNWALD Dosing Machines are the result of well-directed developments and extensive experience. Due to the decade-long cooperation with customers from different industries we have acquired extensive knowhow in solving complex dosing problems.
GRUNWALD dosing machines convince with proven dosing concepts:
- volumetric dosing ......
- with piston pump,
- with sliding chamber,
- with vibration
- flow metering system
- weighing technology

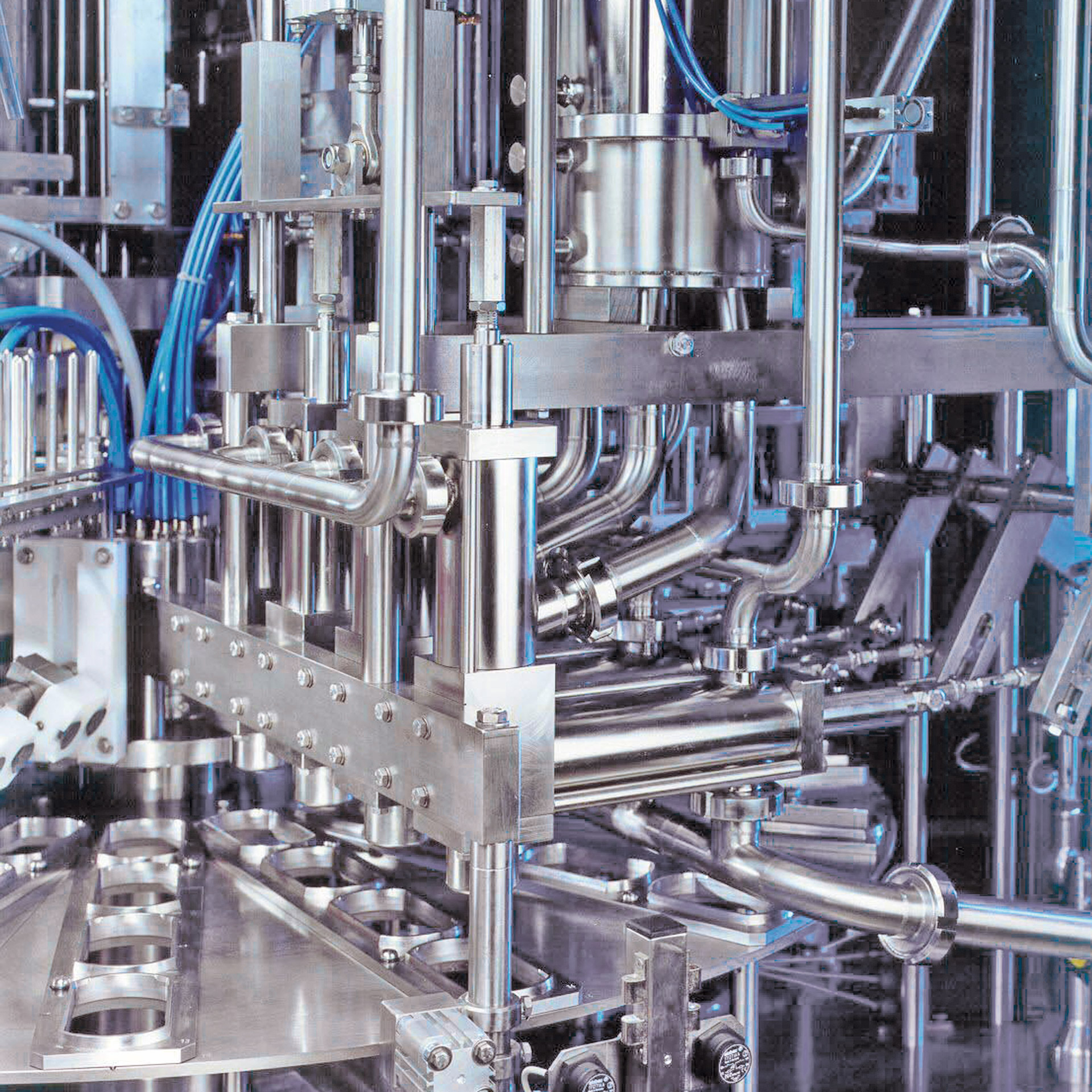

Servodos
Piston dosing system Easyclean Designed in accordance with EHEDG guidelines to meet the maximum of hygiene requirements
especially suitable for liquid and pasty products as well as for liquid or mayonnaise based products which contain particulates.
The flexible servo drive guarantees optimum dosing accuracy and gentle filling with great flexibility.
- exceptional weight accuracy
- can store all product filling parameters
- suitable for filling portion cups up to buckets
The Servodos is ideally suited for integration with:
- thermoforming machines
- cup filling machines
- jar filling machines or
- indexing conveyors
- 1- to 4-lane versions
- 10 – 60 cycles/min.

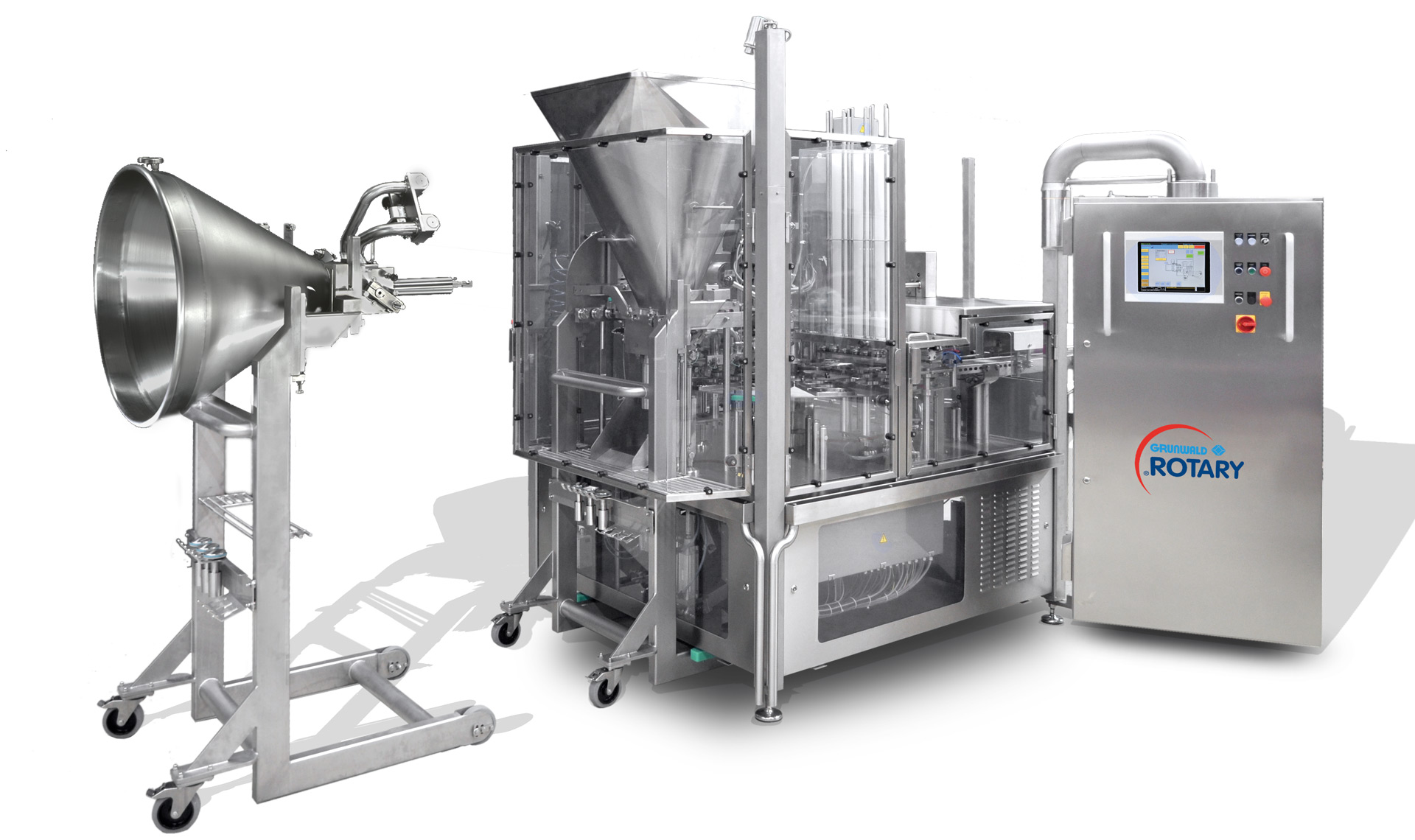

Mobifill
The mobile dosing systems from GRUNWALD are suitable for pumpable products and products which may trickle. The dosing system MOBIFILL is especially suitable for a quick product change. The complete dosing system is exchanged for the next, already cleaned and ready-to-use MOBIFILL. The dosing systems are connected and disconnected without tools and much effort. Due to the complete exchange of the dosing system with all product contact parts the GRUNWALD filling machine becomes allergen-free within less than 5 minutes.

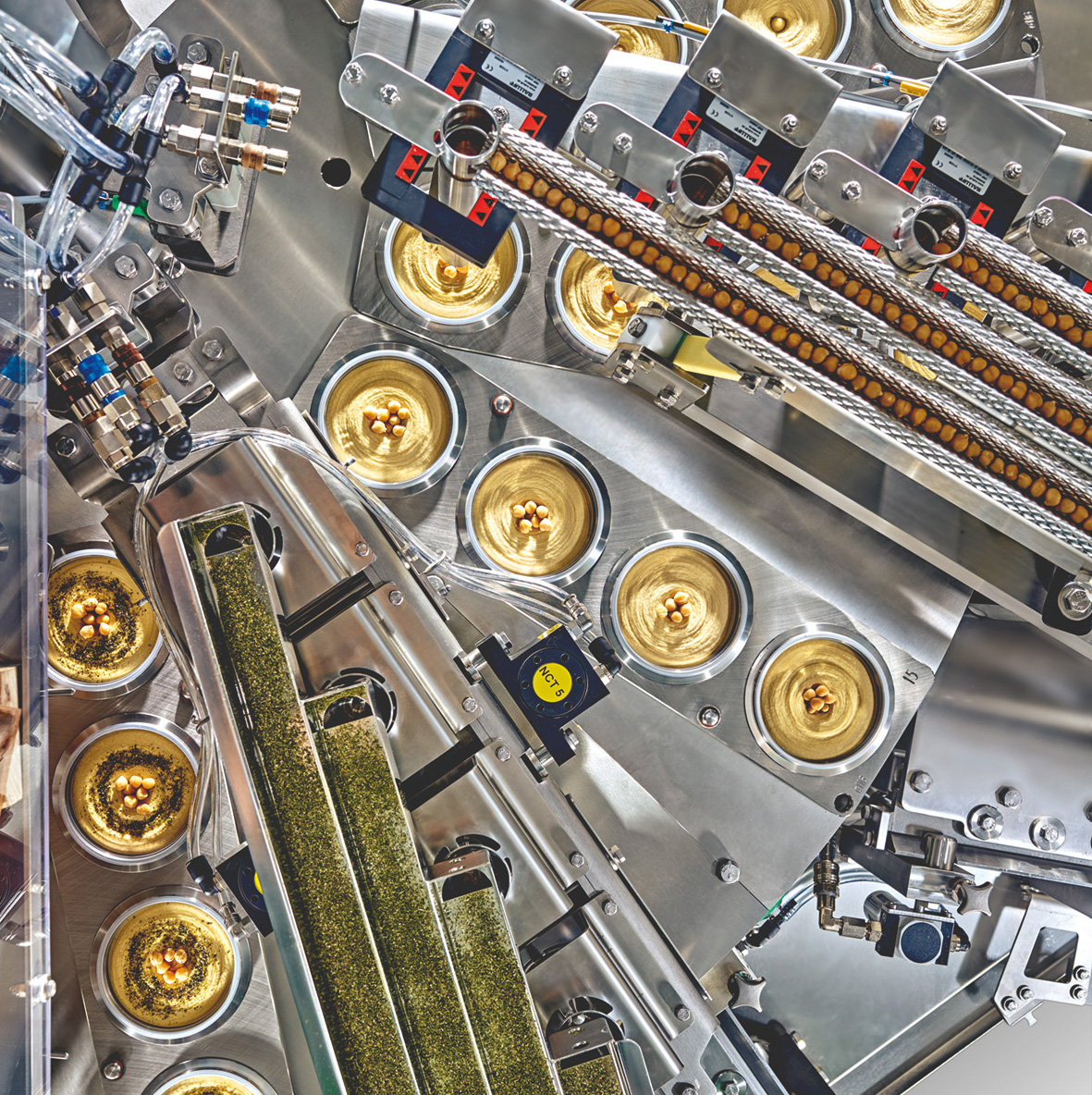

Mobile Decorating Stations
Decorating stations can be added on rotary and linear machines to count seeds, spread ground spices or herbs and handle many non-pumpable goods added on the top of the cup/tray before gas-flushing and/or sealing.

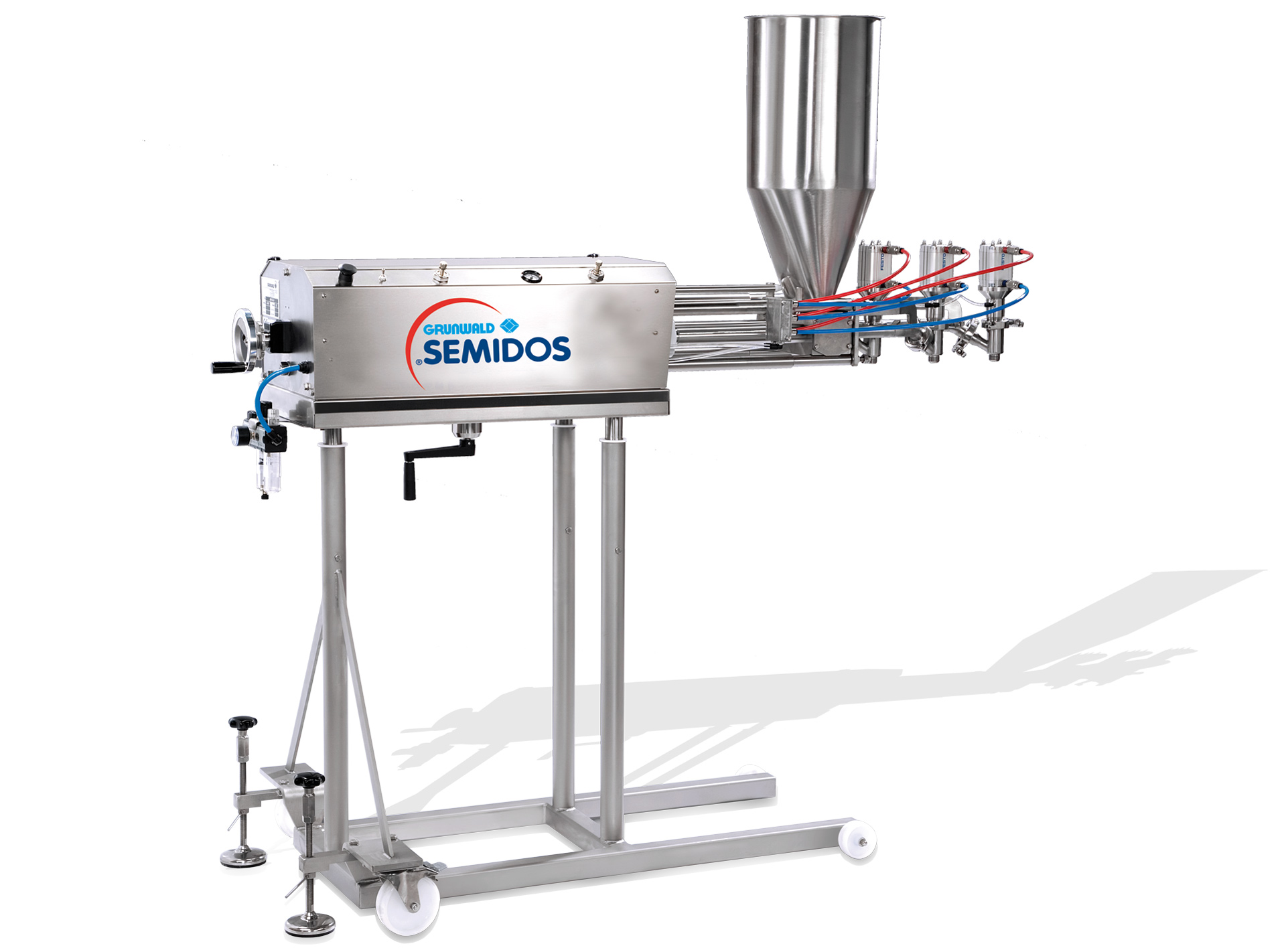

Semidos
The SEMIDOS is a small and compact dosing machine which is suitable for a wide range of applications from liquid to pasty products. It is available in mobile or stationary designs.
The SEMIDOS is a pneumatically operated machine – no electric supply required
The SEMIDOS is ideally suited for connection to
- thermoforming machines
- cup filling machines
- jar filling machines or
- indexing conveyors
- 1- to 3-lane versions
- 10 – 30 cycles/min.
