Foodliner

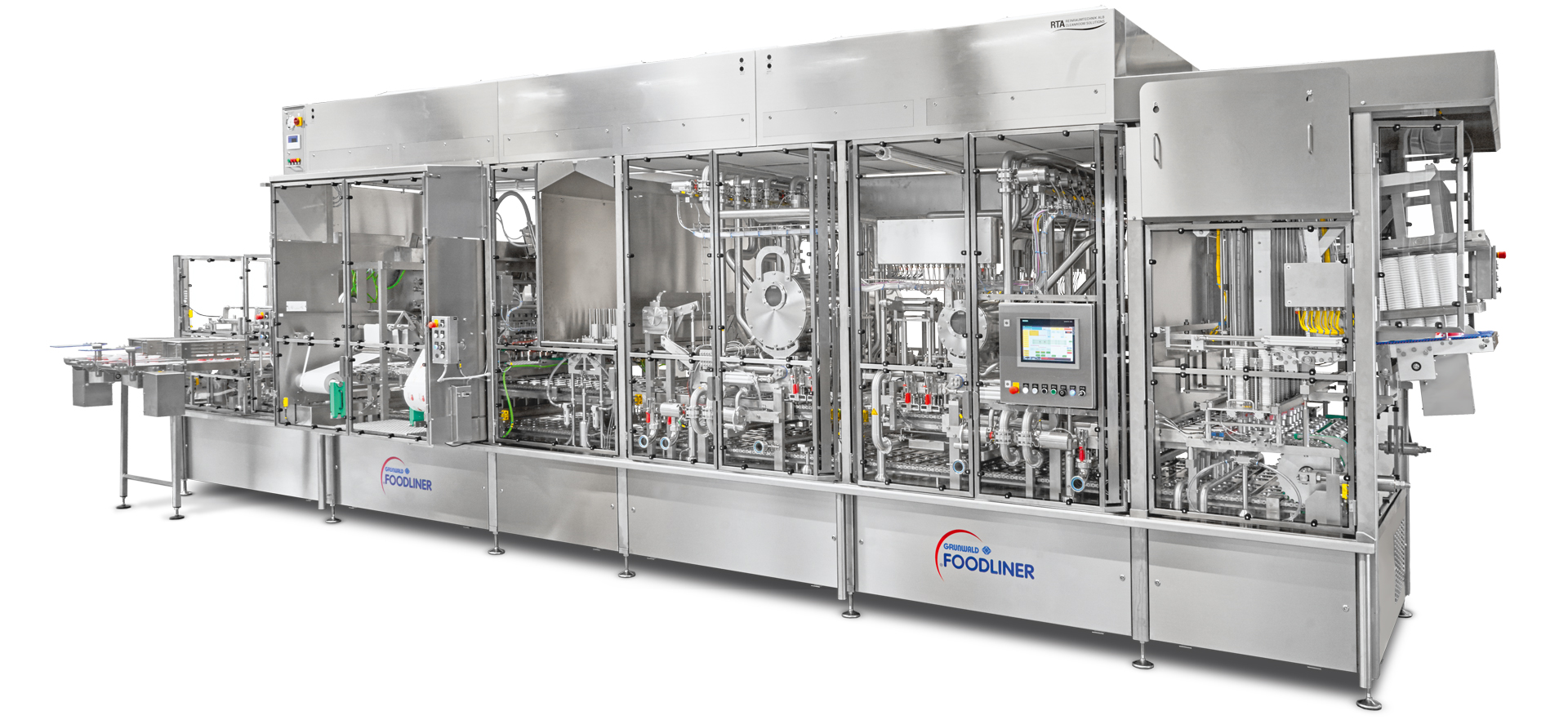

Grunwald Foodliner

The FOODLINER is available in 4 executions. They mainly differ in the production speed. Model choice is based on the following criteria

Foodliner 3.000

  • Width of the machine: 900 mm
  • 1- to 3-lane versions
  • Approximately 3.600 – 10.800 cups/h
  • Dosing range: 20 – 1.700 ml

Foodliner 6.000

  • Width of the machine: 1.380 mm
  • 2- to 6-lane versions
  • Approximately 7.200 – 21.600 cups/h
  • Dosing range: 20 – 1.700 ml

Foodliner 12.000

  • Width of the machine: 1.540 mm
  • 3- to 8-lane versions
  • Approximately 10.800 – 28.800 cups/h
  • Dosing range: 20 – 1.700 ml

Foodliner 20.000

  • Width of the machine: 1.650 mm
  • 4- to 2 x 10-lane versions
  • Approximately 14.400 – 50.000 cups/h
  • Dosing range: 20 – 1.700 ml

Foodliner UC

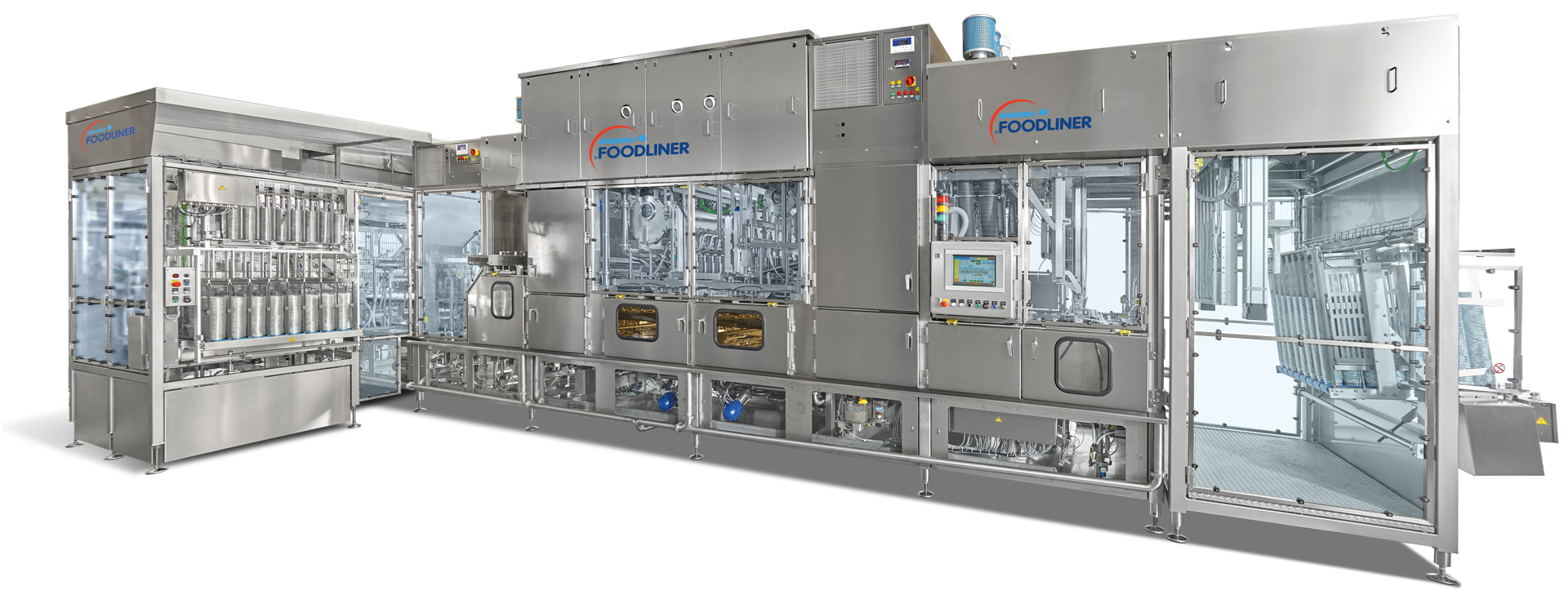

Grunwald Foodliner UC

The ultra-clean FOODLINER UC is the hygienic further development of the standard FOODLINER machine. This flexible linear machine was designed for the dairy industry with single or double advance feed so that it can handle different container sizes efficiently. Packing materials are sterilised using a mixture of steam and H2O2 (hydrogen peroxide), and in combination with EHEDG certified CIP/SIP fillers a longer shelf life can be achieved.

Foodliner 15.000 UC

  • Width of the machine: 1.380 mm
  • 4- to 6-lane versions
  • Approximately 10.000 – 15.000 cups/h
  • Dosing range: 20 – 1.700 ml

Foodliner 30.000 UC

  • Width of the machine: 1.650 mm
  • 6- to 10-lane versions
  • Approximately 25.000 cups/h
  • Dosing range: 20 – 1.700 ml

Flexliner

With the FLEXLINER SP Grunwald can meet the quickly changing market demands on products and packing materials. The cup transport system is designed in such a way that it is independent of the cup shape. Cups are held by two specially shaped transport rails during the machine index. These transport rails are driven by two separate pairs of chains which are themselves driven by two servo-motors. This transport system gives rapid format changeover without changing the transport rails. Due to the flexible cup transport and the simple integration of various dosing systems, the filling of products in the full viscosity range in many different container shapes is possible. The low, narrow design gives excellent access and ergonomic operation. Therefore this machine is especially suited for the integration of handfill sections.

Flexliner SP
