Handtmann Filling &
Portioning Systems

Handtmann vacuum filling technology stands for perfection down to the very last detail and for premium quality in every respect: long-term stable portioning accuracy, very low wear, capacity tailored to individual needs, a wide variety of applications, and top-level hygiene and ergonomics

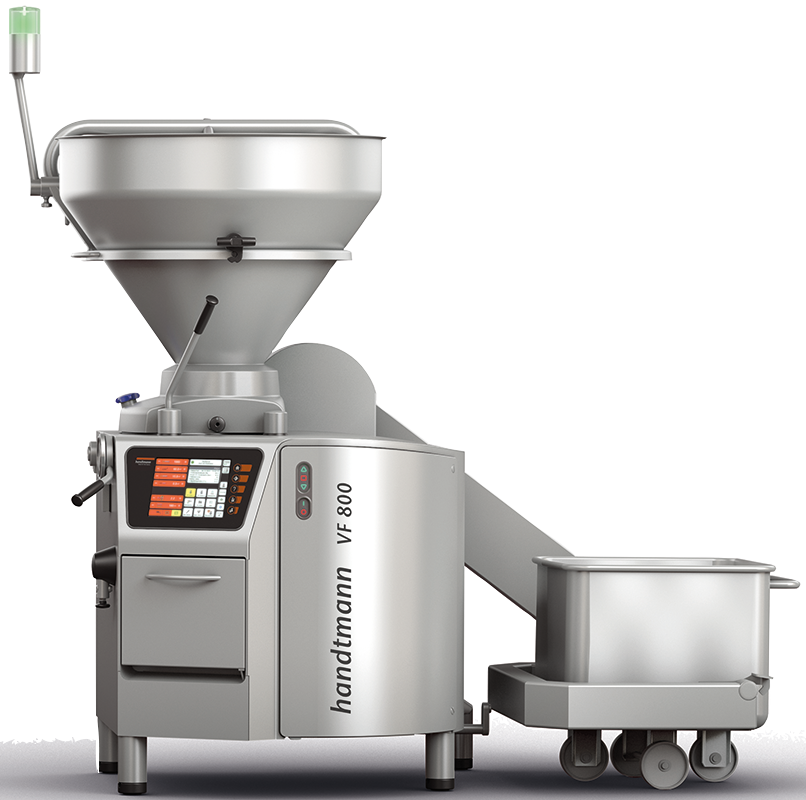

VF800 for Medium-Scale & Industrial Producers

Technical Data

Model	Filling Capacity kg/h	Filling Pressure bar	Hopper Volume liter	Portioning Capacity portions/min
VF 830	6.000	up to 25	up to 550	up to 800
VF 838 S	9.000	up to 70	up to 550	up to 1000
VF 840	9.000	up to 25	up to 550	up to 800
VF 842	12.000	up to 40	up to 550	up to 800
VF 848 S	15.000	up to 45	up to 550	up to 1000
VF 830 D*	6.000	up to 25	350, single-piece	up to 800
VF 838 S D*	6.000	up to 25	350, single-piece	up to 800
VF 840 D*	9.000	up to 25	350, single-piece	up to 800
VF 842 D*	12.000	up to 25	350, single-piece	up to 800
VF 848 S D*	9.000-15.000	30 - 45	350, single-piece	up to 1.000

*dairy execution, in compliance with 3-A Sanitary Standard 23-06

Small-Scale Production

Technical Data

Model	Filling Capacity kg/h	Filling Pressure bar	Hopper Volume liter	Portioning Capacity portions/min

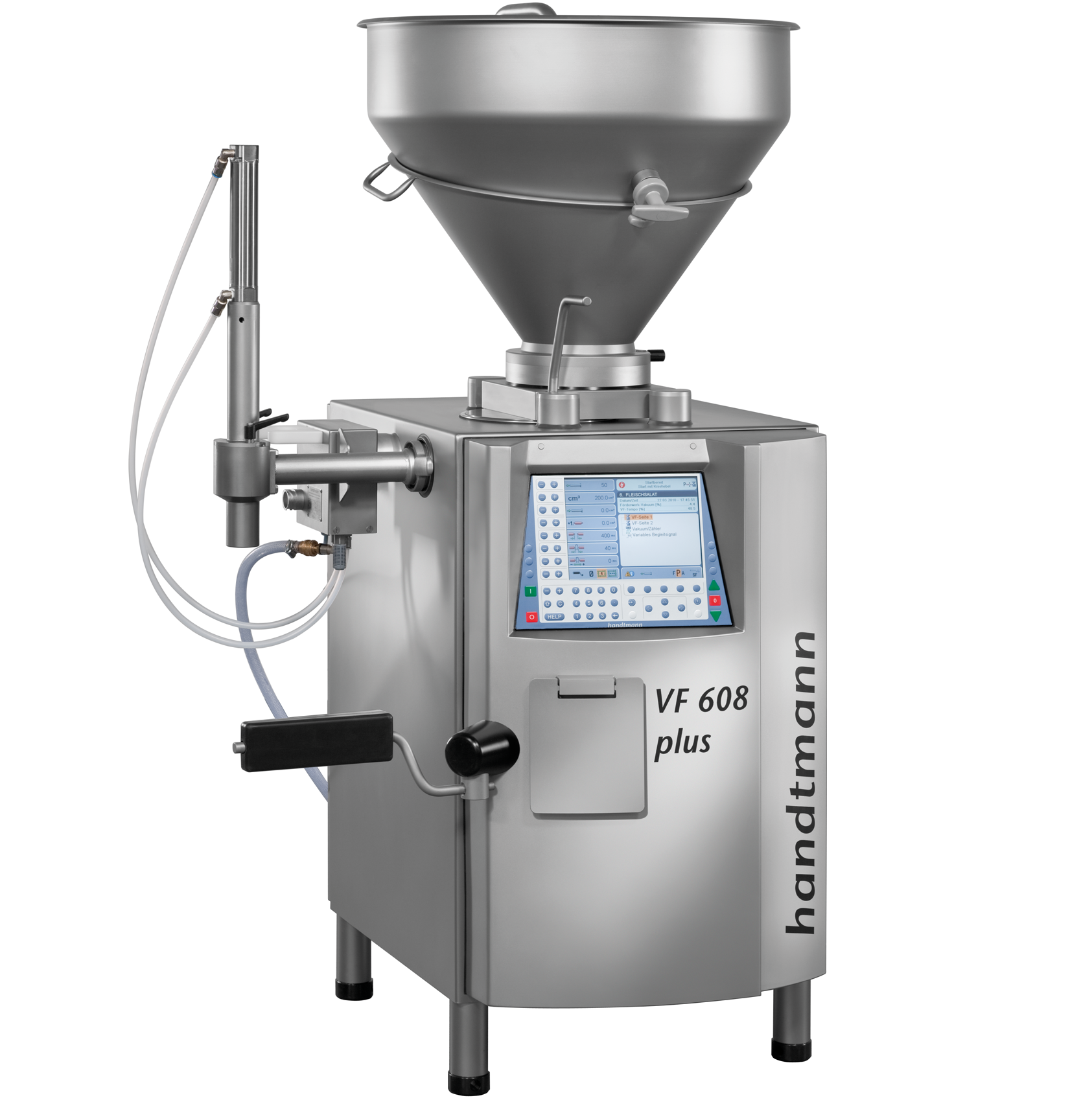

VF 608 plus	2.000	up to 40	up to 100	up to 300
VF 610 plus	3.000	up to 50	up to 100	up to 450
VF 612 H	2.000	up to 40	up to 240	up to 450
VF 612 K	3.000	up to 50	up to 240	up to 450
VF 612	3.000	up to 35	240	up to 600

Medium-Scale & Industrial Production

Technical Data

Model	Filling Capacity kg/h	Filling Pressure bar	Hopper Volume liter	Portioning Capacity portions/min
VF 611	2.000	up to 15	up to 350
VF 612	3.000	up to 35	up to 240	up to 600
VF 616	3.600	up to 45	90/240	up to 700
VF 620 K	4.500	up to 40	90/240	up to 600
VF 620	6.000	up to 40	90/240	up to 700
VF 622	3.600	up to 72	90/240	up to 600
VF 624	4.200	up to 72	90/240	up to 700

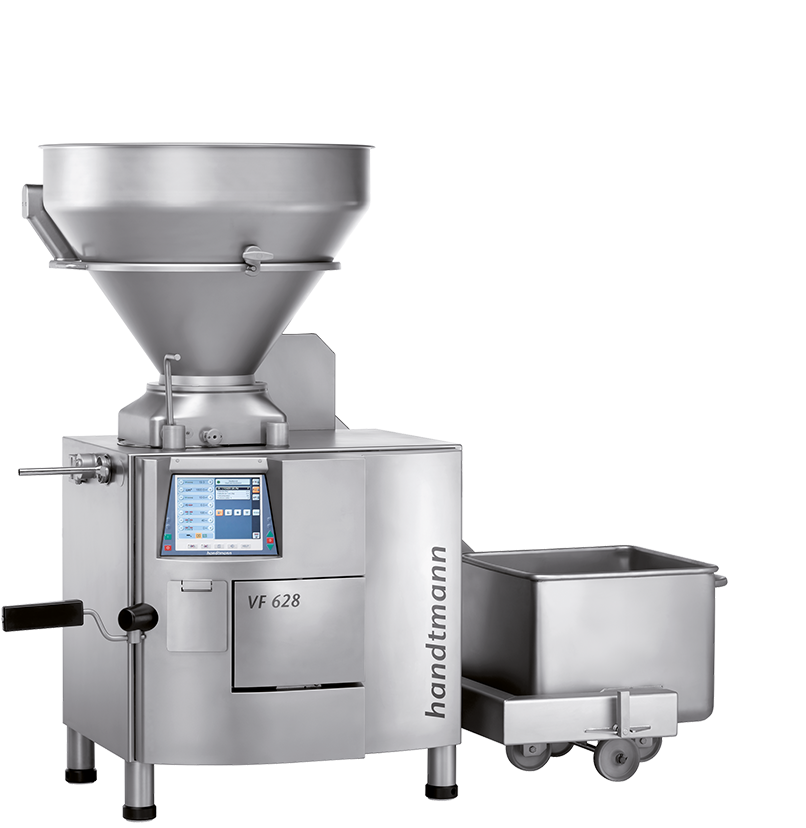

VF 628	7.200	up to 72	90/350	up to 700
VF 630 K	8.400	up to 25	90/350	up to 600
VF 630	10.500	up to 40	90/350	up to 700
VF 631	14.400	up to 20	90/350
VF 634	14.400	up to 35	90/350	up to 700

High Vacuum Fillers

Technical Data

Model	Filling Capacity kg/h	Filling Pressure bar	Hopper Volume liter	Portioning Capacity portions/min
HVF 658	2.000	up to 72	up to 350	up to 450
HVF 660	10.200	up to 40	up to 350	up to 450
HVF 664	14.400	up to 35	up to 350	up to 1.100

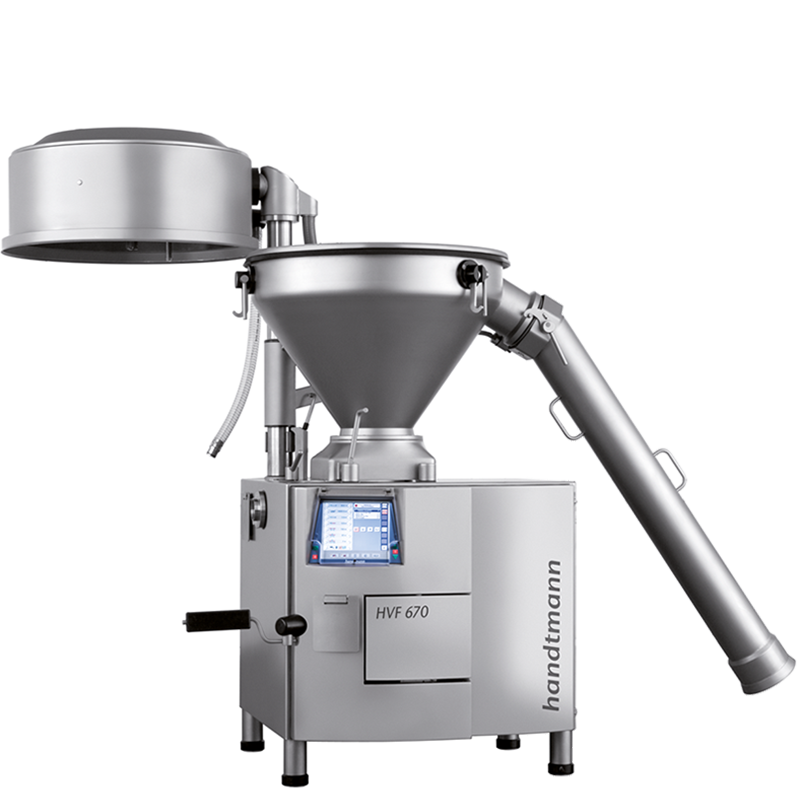

HVF 670	16.000	up to 10	up to 350	up to 1.100
