Cutting Technology
WT 99
The WT99 brings precision and speed together. Sausage links are separated exactly and fast. The operation is comfortable and easy thanks to a clearly structured operation panel with photo guidance (of your products).
- Reliable design and concept
- Cutting capacity up to 1800 cuts per minute
- Conveying speed adjustable and programmable: 0,1 – 2,10 [m/s]
- Minimum length of the twist 2 [mm]
- Range of Adjustment: 8 – 48 [mm]
- Ergonomic infeed and outlet heights
- Compact design with minimum space requirement
- Minimum power requirement
- Constant cutting results, programmable product and machine parameters. With photo guidance (with your product photos) and automatic range of adjustment
- Cutting of double clipped and tied products
- Counting and portionning function
- Control panel is language free, only with illustrations and intuitively to handle. The clear structure makes it similar to operate like smartphones and tablet computers.
- Hygienic machine design, designed for heavy duty industrial operation
- Optionally with communication modules for a data exchange with your production and for the use in automatic feeding and packaging lines
- Automatic recognition of the sausage link. An intelligent mode makes the adjustment of the product easy and guarantees maximum cutting precision
- Constant cut mode from 10 mm with single knife or only remove of the two sausage tips

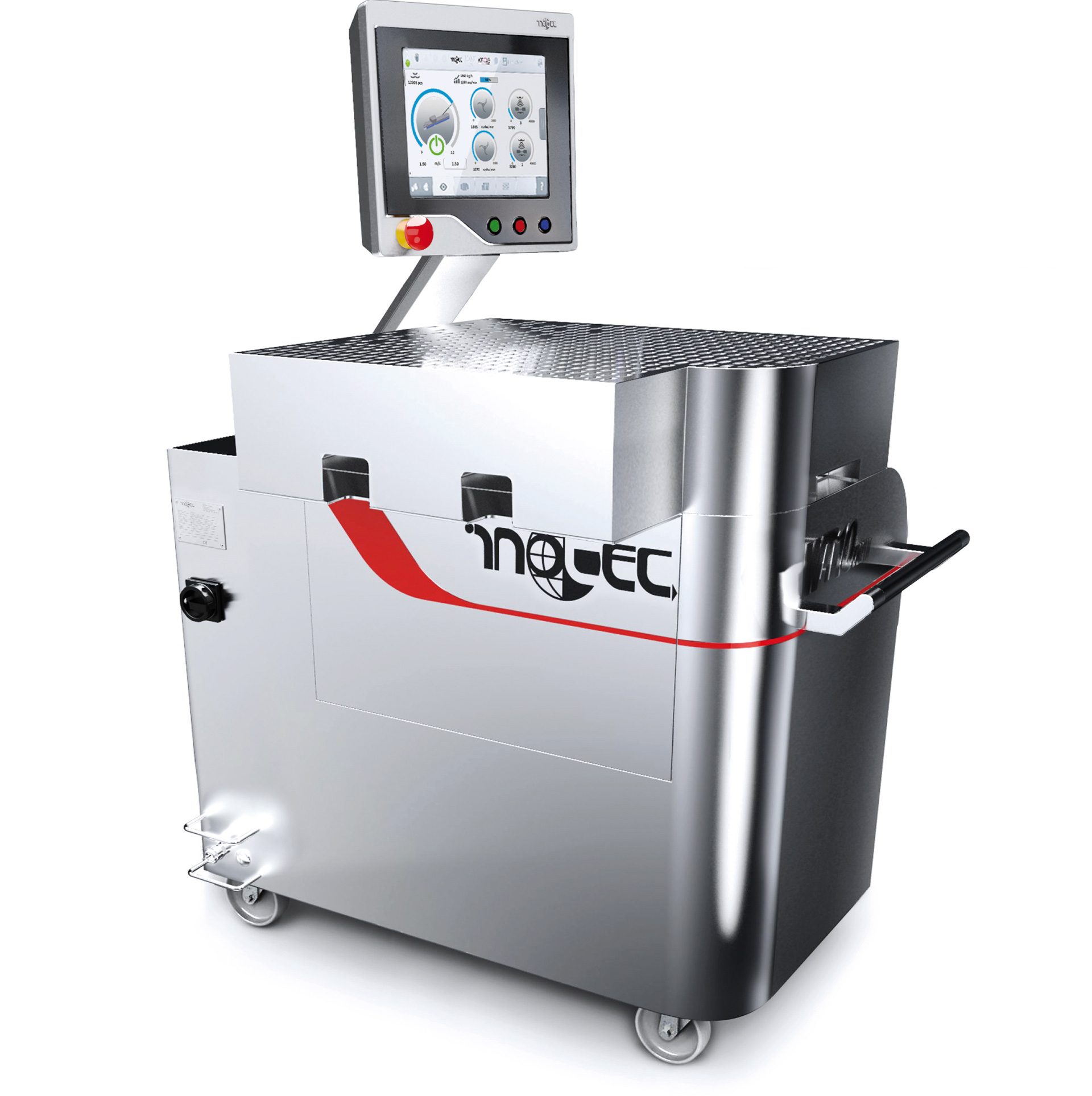

WT 99 TWIN
Beside precision and speed the WT99 TWIN stands for highest productivity thanks to the patented product guidance with two cutting devices. Sausage links are separated exactly and fast in two cutting lanes. The WT99 TWIN is the ideal link cutter for big production capacities.
- Reliable design and concept
- Cutting capacity up to 2 x 1.800 cuts per minute
- Conveying speed adjustable and programmable: 0,1 – 2,10 [m/s] per cutting lane
- Minimum length of the twist 2 [mm]
- Range of adjustment: 8 – 32 [mm]
- Optional Air Clean System to clean the area of the light curtain by compressed air
- Twist Extender as option
- Ergonomic infeed and outlet heights
- Compact design with minimum space requirement
- Minimum power requirement
- For big production volume: 2 jointly driven, independent cutting lanes for double cutting performace with one Operator
- Constant cutting results, programmable product and machine parameters. With photo guidance (with your product photos) and automatic range of adjustment
- Cutting of double clipped and tied products
- Counting and portionning function
- Control panel is language free, only with illustrations and intuitively to handle. The clear structure makes it similar to operate like smartphones and tablet computers.
- Hygienic machine design, designed for heavy duty industrial operation Optionally with communication modules for a data exchange with your production and for the use in automatic feeding and packaging lines
- Automatic recognition of the sausage link. An intelligent mode makes the adjustment of the product easy and guarantees maximum cutting precision
- Constant cut mode from 10 mm with single knife or only remove of the two sausage tips

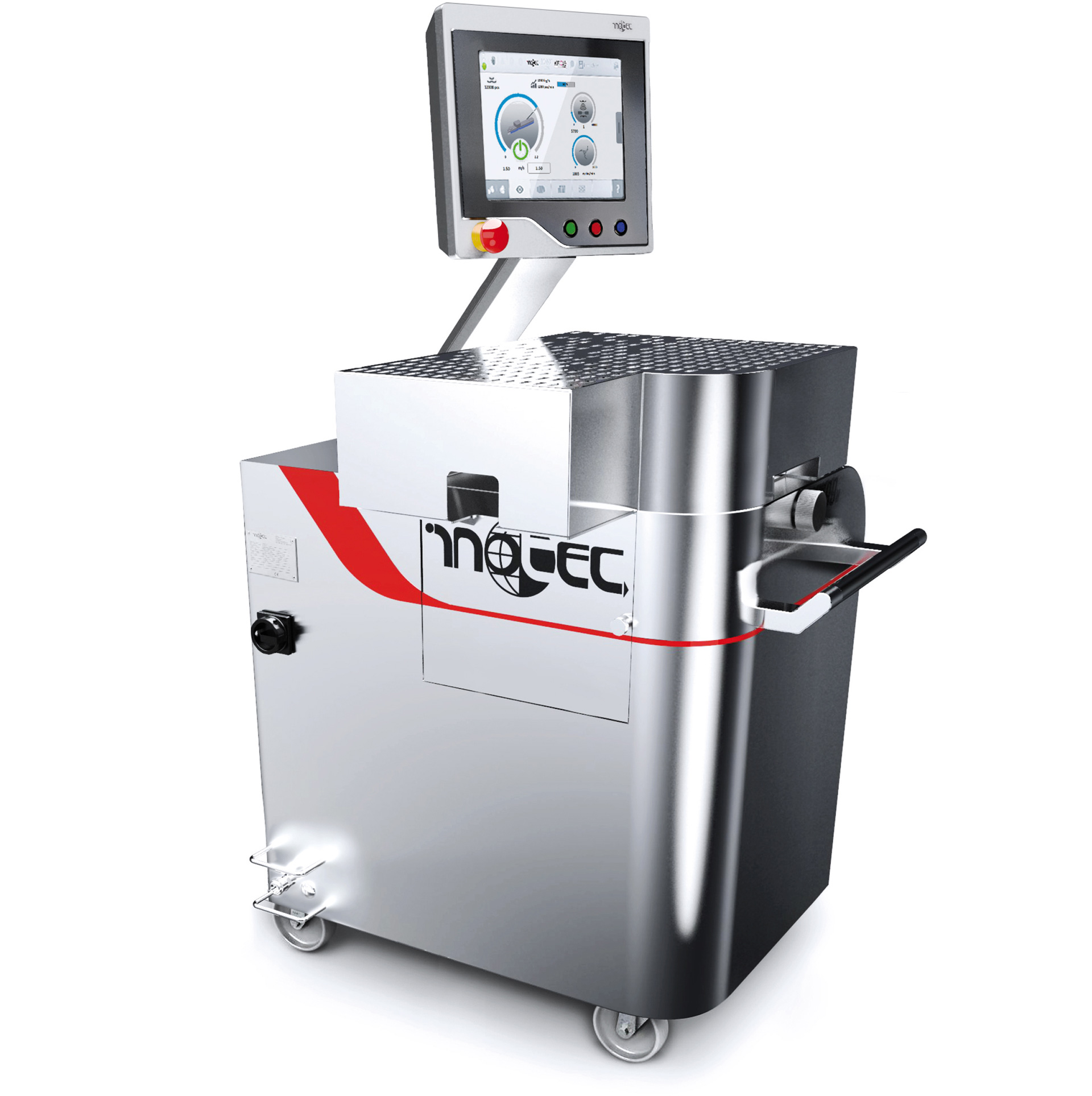

WT 99 Twist Remove
The flexible WT99 Twist Remove – a special machine for fresh, cooked and smoked products. The twist between two sausages can be removed with a special knife in defined distances. Special single cut knives are available for this machine.
- Reliable design and uniqe concept
- Cutting capacity up to 1.000 cuts per minute
- Conveying speed adjustable and programmable: 0,1 – 2,10 [m/s]
- Length of the removed part of the twist is variable, different double knifes from 3 to 8 [mm]
- Range of adjustment: 8 – 48 [mm]
- Optional Air Clean System to clean the area of the light curtain by compressed air
- Twist Extender as option
- Ergonomic infeed and outlet heights
- Compact design with minimum space requirement
- Minimum power requirement
- Unique special machine to eliminate inconvenient sausage twists
- Double knife available with a distance from 3 to 8 mm for optimum adaption to your product
- Constant cutting results, programmable product and machine parameters. With photo guidance (with your product photos) and automatic range of adjustment
- Control panel is language free, only with illustrations and intuitively to handle. The clear structure makes it similar to operate like smartphones and tablet computers.
- Hygienic machine design, designed for heavy duty industrial operation
- Automatic recognition of the sausage link. An intelligent mode makes the adjustment of the product easy and guarantees maximum cutting precision
- Constant cut mode from 10 mm with single knife or only remove of the two sausage tips

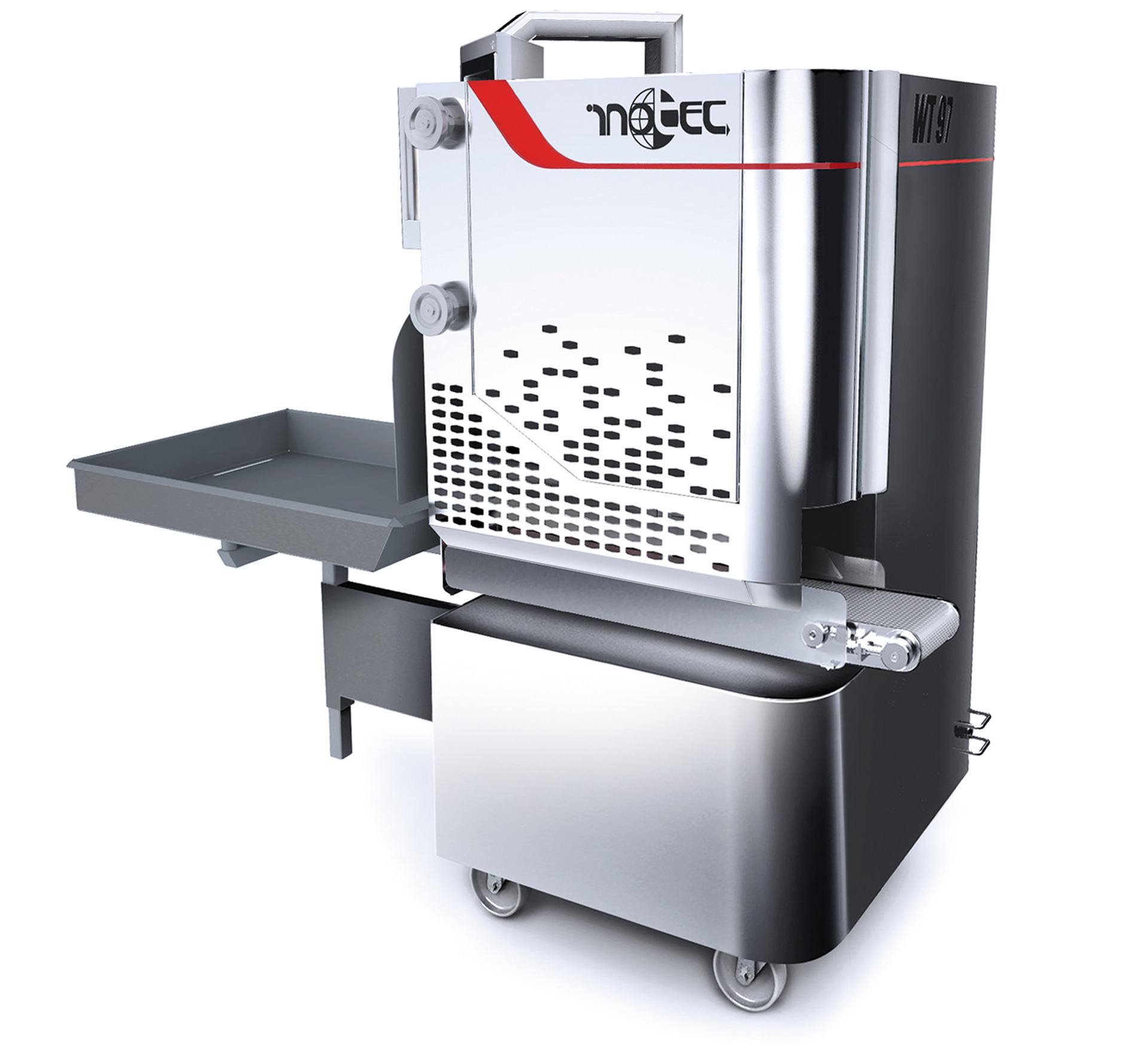

WT 97 Curved
The unique special machine for curved products is the only one on the market to separate efficiently sausages produced in ring casings (either plastic, collagen, cellulos/fibrous or natural).
- Unique special machine to cut curved products which would break by using conventional sausage cutting machines
- Automatic range adjustment
- Cutting capacity up to 1.800 Cuts per Minute
- Conveying speed: 0,1 – 1,40 [m/s]
- Minimum length of the twist: 2 [mm]
- Range of adjustment: 14 – 44 [mm]
- ergonomic height of product entry and product outlet, 3 different outlet versions (chute, conveyor with flat belt, conveyor with round belts)
- Adjustable ergonomic loading platform
- Optional Air Clean System to clean the area of the light curtain by compressed air
- Twist Extender as option
- Compact design with minimum space requirement
- Minimum power requirement
- The high performance specialist for curved products
- Constant cutting results, programmable product and machine parameters. With photo guidance (with your product fotos) and automatic caliber adjustment
- Cutting of double clipped and tied products
- Counting and portionning function
- Funcition to cut a fixed distance for products which are not twisted
- Soft start for fragile casings
- Control panel is language free, only with illustrations and intuitively to handle. The clear structure makes it similar to operate like smartphones and tablet computers
- Hygienic machine design, designed for heavy duty industrial operation
- Optionally with communication modules for a data exchange with your production and for the use in automatic feeding and packaging lines
- Automatic recognition of the sausage link. An intelligent mode makes the adjustment of the product easy and guarantees maximum cutting precision
- Constant cut mode from 10 mm with single knife or only remove of the two sausage tips
ECO2 Clip Remove
The EC02 declipps and separates quickly, hygienically and precisely your product. Thanks to an optional connection to the packaging system your productivity grows.
- Special machine for the separation of clipped products with clip removal
- Capacity up to 60 declipping cycles per minute
- Conveying speed: adjustable in 7 steps
- Type 1: Adjustment range: 36 to 82 (mm) Product length: > 130 [mm]
- Type 2: Adjustment range: 66 to 112 (mm) Product length: > 180 [mm]
- Compact design with minimum space requirement
- Minimum power requirement
- Option: INOTEC loading platform, for placing the sausage chains prior to the declipper, with pneumatic knife for the removal of hanging loops. Synchronized with the EC 02
- Optionally with communication modules for a data exchange with your production and for the use in automatic feeding and packaging lines
Constantly higher demands of supermarkets regarding the product presentation and safety are resulting in a packaging of products without clips. INOTEC is your partner for removing the clips of all kind of products. Furthermore INOTEC offers the possibility to declip the product logs in an automatic line on both sides and then they can be cutted automatically obliquely.
