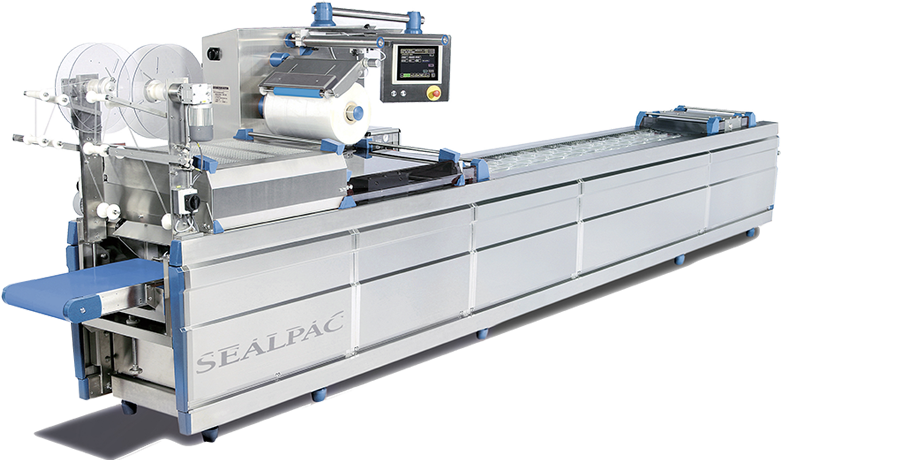

Sealpac’s entire Thermoformer programm starting from the entry-level machine PRO10 up to the high-performance model RE30 stands for high precision, reliability and durability.
| Frame length | 3.000 – 6.000 mm |
|---|---|
| Machine width | 1.300 mm |
| Film width | 320, 420, 460 mm (optional 250-460 mm) |
| Cut off length | 200 – 360 mm (side pin), 150 – 360 mm (narrow top web) |
| Max. Draw depth | 105 mm |
| Air pressure | 6-7 bar (90 PSI) |
| Connection values | 3 ph 230 V / 60Hz, 3 ph 400 V / 50Hz |
| Cooling water | 160 l/h, max. 15°C |
| Distance between dies | 1.450-2.090 mm |
|---|---|
| Frame length | 4.000 mm |
| Machine width | 930 mm |
| Film unwinding | reel outside 400 mm |
| Film width | 320 mm |
| Max. Cut off length | 400 mm |
| Max. Draw depth | 120 mm |
| Air pressure | min. 6 bar (90 PSI) |
| Connection values | 3 x 230 V / 400, 50 / 60Hz |
| Cooling water | 60 l/h(*), 2 bar, max. 25°C |
| Distance between dies | 1.450-2.090 mm, 2.450-3.090 mm, 3.450-4.090 mm |
|---|---|
| Frame length | 4.000, 5.000, 6.000 mm |
| Machine width | 1070 mm |
| Film unwinding | reel outside 400 mm |
| Film width | up to 460 mm |
| Max. Cut off length | 600 mm |
| Max. Draw depth | 120 mm |
| Air pressure | min. 6 bar (90 PSI) |
| Connection values | 3 x 230 V / 400, 50 / 60Hz |
| Cooling water | 200 l / hr(*), 2 bar, max. 25°C |
| Distance between dies | 1.450-2.090 mm, 2.450-3.090 mm, 3.450-4.090 mm, 4.450-5.090 mm |
|---|---|
| Frame length | depending on machine configuration |
| Machine width | depending on machine configuration |
| Film unwinding | reel outside 400-1.000 mm |
| Film width | up to 320-650 mm |
| Max. Cut off length | 600 mm |
| Max. Draw depth | up to 180 mm |
| Air pressure | min. 6 bar (90 PSI) |
| Connection values | 3 x 230 V / 400, 50 / 60Hz |
| Cooling water | 200 l / hr(*), 2 bar, max. 25°C |
| Distance between dies | 1.450-2.090 mm, 2.450-3.090 mm, 3.450-4.090 mm, 4.450-5.090 mm |
|---|---|
| Frame length | depending on machine configuration |
| Machine width | depending on machine configuration |
| Film unwinding | reel outside 400-1.000 mm |
| Film width | up to 305-650 mm |
| Max. Cut off length | 800 mm |
| Max. Draw depth | up to 200 mm |
| Air pressure | min. 6 bar (90 PSI) |
| Connection values | 3 x 230 V / 400, 50 / 60Hz |
| Cooling water | 200 l / hr(*), 2 bar, max. 25°C |
