Sealpac Traysealer

Sealpac has the right machine for every requirement: from the semi-automatic M-Flex up to the fully automated traysealing unit A10max in double lane construction. All machines are characterized by simple operation, reliability and durability optimal hygiene and secure technology.

Semi-Automatic Traysealer

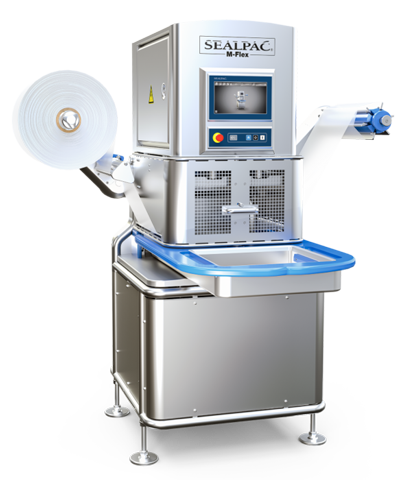

M-Flex

M-Flex

The semi-automatic M-Flex traysealer with minimum footprint enables companies with smaller production volumes and frequent product changes to enter the professional world of traysealing by combining highest product protection with an attractive appearance and economical use of materials.

The compact M-Flex traysealer is based on the rotation principle. Whilst manual loading and unloading of the trays takes place at the front, the actual packaging process takes place at the back simultaneously. This is not only extremely efficient, it also allows our customers to use SEALPAC’s entire range of packaging systems in a small space, from standard solutions to innovative concepts, such as TraySkin®, FlatSkin®, FlatMap®, EasyLid®, and more. Even with high product protrusion!

Fully Automatic Traysealer

For industrial production capacities Sealpac offers everything from compact traysealers to maximum output solutions. Moreover a series of innovative packaging solutions can be realized on Sealpac’s A-series.

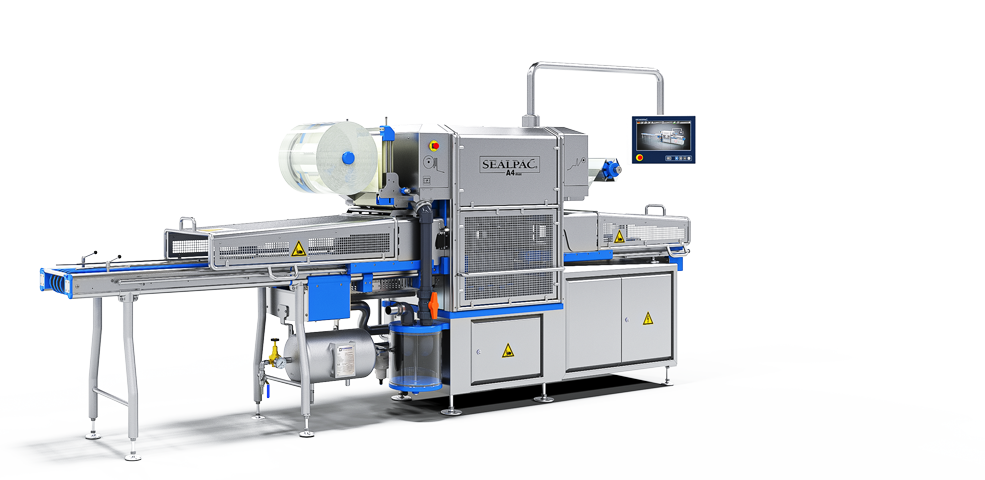

A4max

A4 MAX

Technical Data

Average output in cycles (trays) per minute* for...
...sealing only 14 (28)
...MAP 12 (24)
...TraySkin® 7 (14)
Power max. 8 kW
Air pressure 6 bar
Cooling water 240 l/hour, max. 15°C

"Based on 190 × 144 mm tray.
Always depending on product, tray format, etc.

A5max

A5 MAX

Technical Data

Average output in cycles (trays) per minute* for...
...sealing only 14 (84)
...MAP 12 (72)
...TraySkin® 7 (42)
Power max. 8 kW
Air pressure 6 bar
Cooling water 240 l/hour, max. 15°C

"Based on 190 × 144 mm tray.
Always depending on product, tray format, etc.

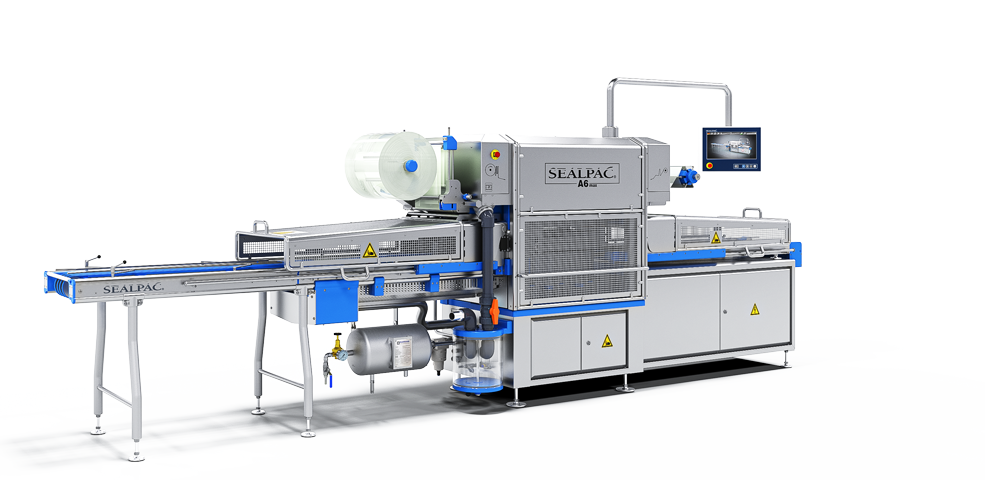

A6max

A6 MAX

Technical Data

Average output in cycles (trays) per minute* for...
...sealing only 18 (144)
...MAP 15 (120)
...TraySkin® 8 (64)
Power max. 12 kW
Air pressure 6 bar
Cooling water 300 l/hour, max. 15°C

"Based on 190 × 144 mm tray.
Always depending on product, tray format, etc.

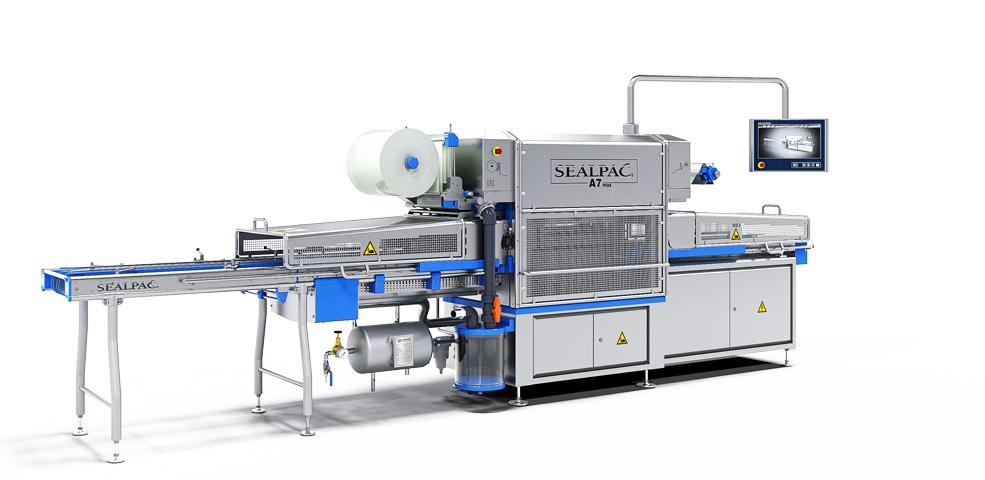

A7max

A7 MAX

Technical Data

Average output in cycles (trays) per minute* for...
...sealing only 18 (180)
...MAP 15 (150)
...TraySkin® 8 (80)
Power max. 12 kW
Air pressure 6 bar
Cooling water 300 l/hour, max. 15°C

"Based on 190 × 144 mm tray.
Always depending on product, tray format, etc.

A8max

A8 MAX

Technical Data

Average output in cycles (trays) per minute* for...
...sealing only 18 (216)
...MAP 15 (180)
...TraySkin® 8 (96)
Power max. 12 kW
Air pressure 6 bar
Cooling water 300 l/hour, max. 15 °C

"Based on 190 × 144 mm tray.
Always depending on product, tray format, etc.

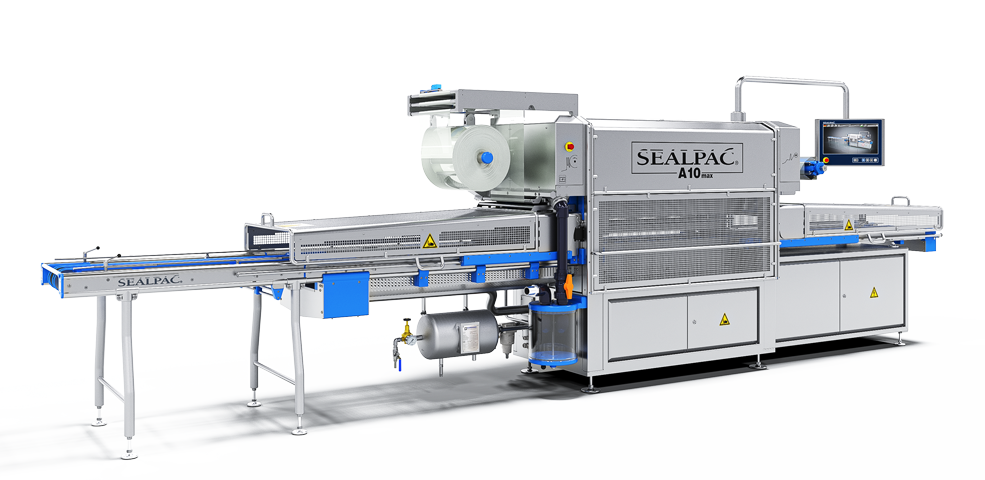

A10max

A10 MAX

Technical Data

Average output in cycles (trays) per minute* for...
...sealing only 18 (252)
...MAP 14 (196)
...TraySkin® 6 (84)
Power max. 15 kW
Air pressure 6 bar
Cooling water 360 l/hour, max. 15 °C

"Based on 190 × 144 mm tray.
Always depending on product, tray format, etc.
